Photovoltaic Welding Strip Rolling Mill

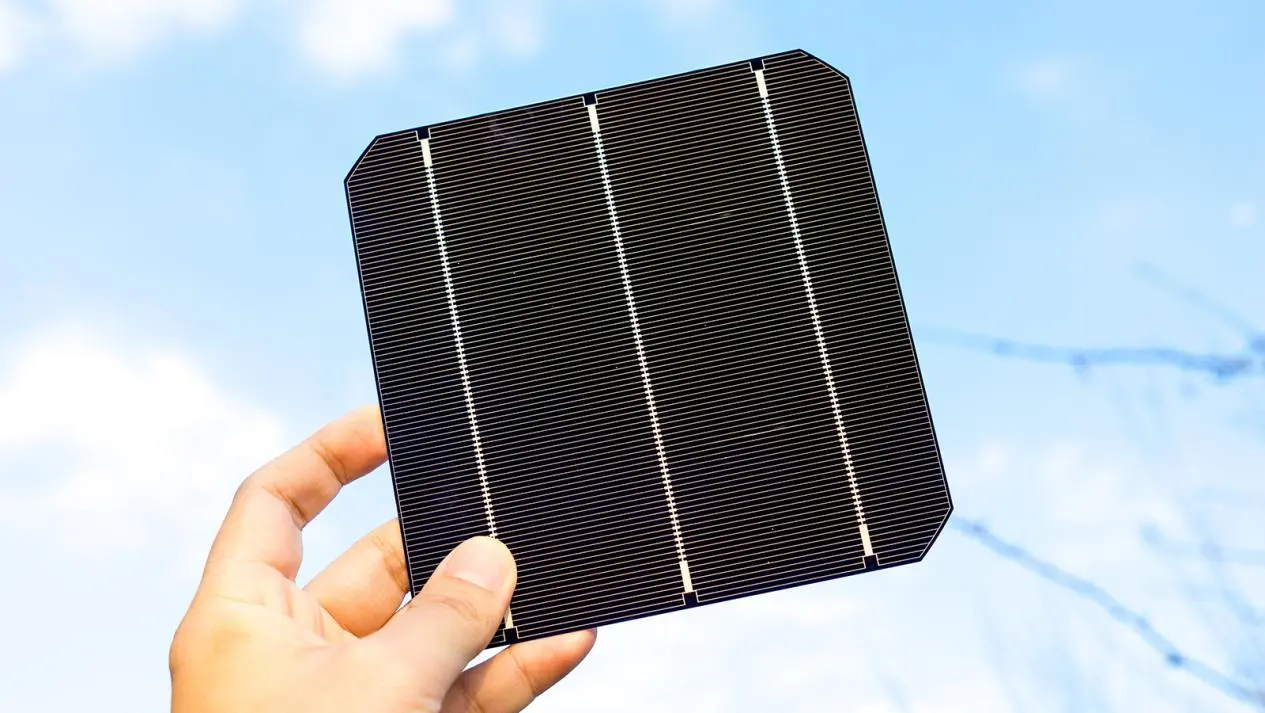

Iyo China photovoltaic welding strip rolling mill inogadzirwa neGRM Rolling Mill fekitori chinhu chakakosha waya waya chigadzirwa chinoshandiswa kubatanidza solar maseru mune photovoltaic modules. Iyo inoumbwa nemhangura substrate uye pamusoro pekuvhara. Copper substrate inowanzoita yakakwirira-kuchena oksijeni isina mhangura kana T2 tsvuku yemhangura, ine mhangura yemukati ≥ 99.99% uye conductivity ≥ 98%. Iine conductivity yakanaka uye imwe simba, iyo inogona kuve nechokwadi chekufambisa kwemazuva ano.

Send Inquiry

Product Description

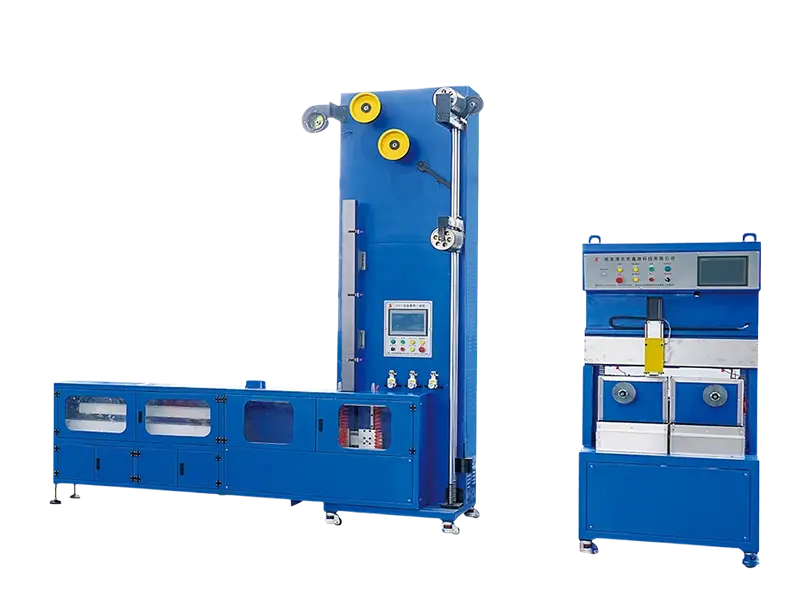

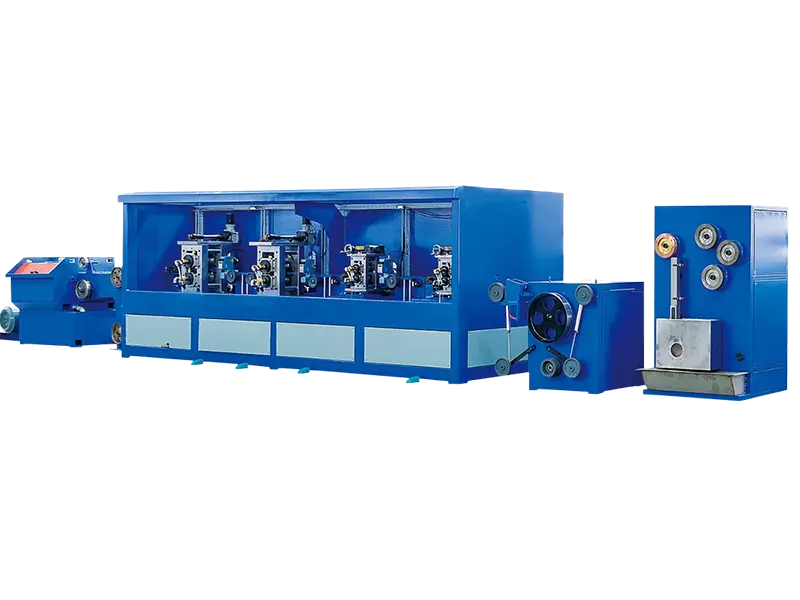

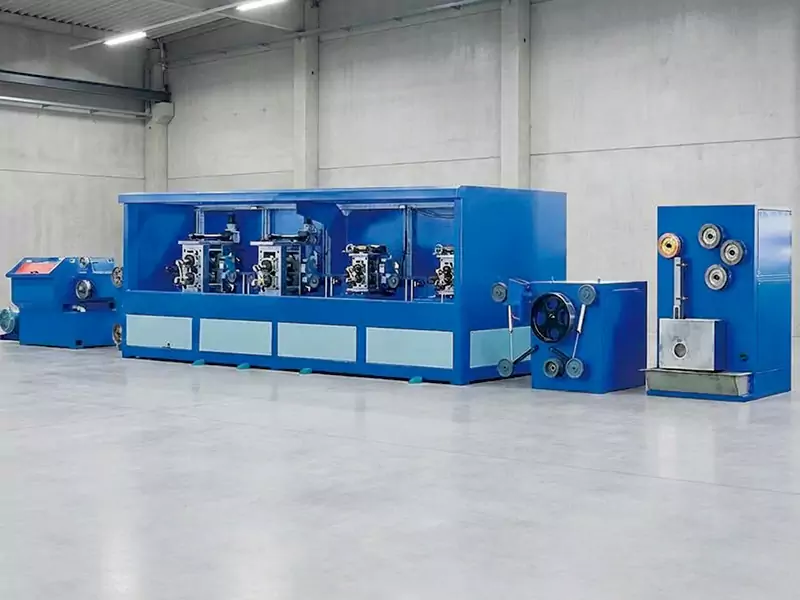

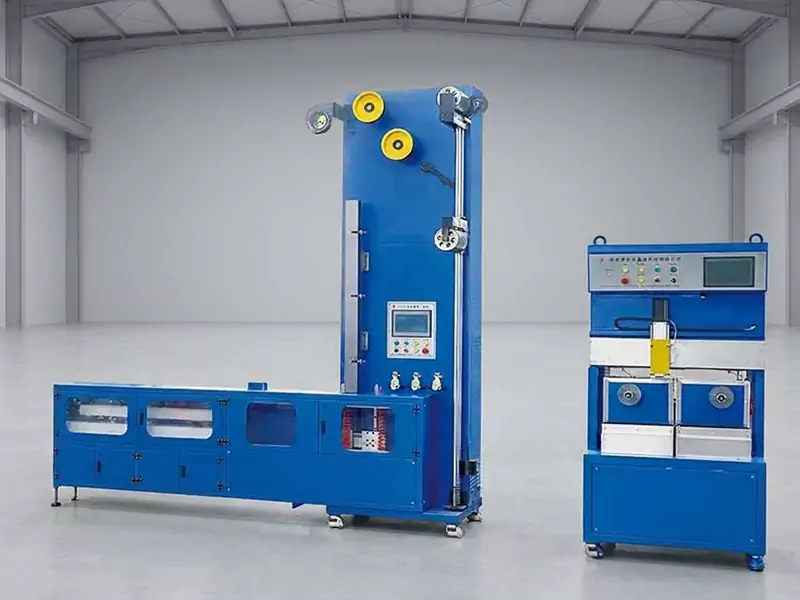

Iyo yakasimba Photovoltaic Welding Strip Rolling Mill kubva kuGRM Rolling Mill mutengesi wakasanganiswa muchina wakazvimiririra wakagadzirwa nekambani yedu ndeye yepamusoro-yekupedzisira yakangwara midziyo yakanyatsogadzirirwa iyo photovoltaic indasitiri. Iyo inobatanidza core functional modules seyakazara otomatiki waya-kuisa system, akawanda-pass precision rolling, akangwara tension control, annealing inoenderera uye kaviri-chiteshi mhepo.

Semuchina unotungamira indasitiri inomhanya-mhanya, yakakwirira-chaiyo bhasibha yakasanganiswa, muchina uyu unokwanisa kuona yakazara-maitiro akabatanidzwa kugadzirwa kubva ¢ 3mm mhangura yezvigadzirwa kusvika kune zvakapedzwa zvigadzirwa (hupamhi 3 ~ 8mm, ukobvu 0.2 ~ 0.45mm), ine hupamhi hwekushanda hwe250m/min, inonyatso enderana neyakaomesesa inodiwa yemhando yepamusoro-soro, hunyanzvi hwekugadzira mapikicha.

Typical process flow

1. Flat wire rolling process (inoshanda kune photovoltaic welding ribhoni-convex ribhoni integrated machine)

Kubhadhara waya - akawanda-modhi waya kudhirowa - chaiyo calendering - kuona pamhepo uye kutonga - imwe-modhi yekudhirowa - CNC kubvisa - yakakwirira-kumhanya tinning - inoenderera mberi annealing (nitrogen kuchengetedzwa) - inogara ine tension mhepo

Technical Parameters

PV Ribhoni Zvigadzirwa	Parameter	Indasitiri Standard	Imwe Kambani	GRM
Standard Interconnect PV Ribhoni	Coating ukobvu	±5μm	25±5μm	25±3μm
	Yakapedzwa chigadzirwa ukobvu	20.01mm	20.015mm	20.01mm
	Yakapedzwa chigadzirwa upamhi	± 0.05mm	± 0.05mm	± 0.05mm
	Kusimba simba	≥110Mpa	≥150Mpa	≥170Mpa
	Elongation	≥15%	≥25%	≥25%
	Goho simba	≤70Mpa	≤70Mpa	62.68Mpa
	Sickle bend	≤5mm/m	≤4mm/m	≤4mm/m
	Resistivity	0.30Ω* mm/m 0.30Ω*	0.02-0.023Ωmm/m 0.02-0.023Ω	0.0230 Ωmm/m 0.0230Ω
	Kuramba kukwegura	-	-	DH2000

Technical zvakanakira

Yakanyanya kurongeka: ± 0.01mm ukobvu kushivirira, kuchinjira kune yakaomesesa zviyero zve photovoltaic welding mitsetse

Kunyanya kushanda zvakanaka: 250m/min yakakwirira-kumhanya kutenderera, yakakwirira-mhando Photovoltaic Welding Strip Rolling Mill yakapihwa

Multi-material adaptation: inoenderana nemhangura, aluminium alloy, nezvimwewo, yakasimba scalability

Kushata kwepamusoro Ra≤0.2μm (kuderedza njodzi yekutsemuka kwebhatiri)

Mashandisirwo akajairika:

Photovoltaic munda: kugadzirwa kwakawanda kwephotovoltaic welding ribhoni uye mabhasibars kubatsira zvikamu kuita magetsi nemazvo.

Tsika gadziriso yemabhazi akasarudzika-akaumbwa (triangular/trapezoidal cross-section)

Indasitiri yemagetsi: yakakwirira-chaiyo flat wire processing, yakakodzera kune transformers, inductors uye zvimwe zvikamu

Customized dhizaini uye pashure-kutengesa sevhisi

Customized sevhisi: ma paramita akadai sehuwandu hwekupfuura, mold zvinhu, uye yekudhirowa kumhanya inogona kugadziridzwa zvichienderana nezvinodiwa nevatengi.

Equipment upgrade: tsigira kuwedzera kwemapass modules mune yakazotevera nhanho kuti isangane nezvinodiwa zvekuwedzera simba kana kusimudzira maitiro.

Mutengo wekuchengetedza: Iyo yakawanda inopfuura, iyo yakakwira mold uye mutengo wekugadzirisa, asi kushanda kwekamwe kugadzirisa kunovandudzwa zvakanyanya. Inokurudzirwa kuita sarudzo inonzwisisika zvichienderana nechiyero chekugadzira.

Tinokugamuchirai kuti mutibate uye muzive rumwe ruzivo nezve Photovoltaic Welding Strip Rolling Mill!
