Yakabatanidzwa Dhirowa uye Rolling Line yePrecision Copper Flat Wire

GRM's Integrated Drawing uye Rolling Line yePrecision Copper Flat Wire igadziriso yemhangura flat waya yekugadzira mhinduro inobatanidza waya yekudhirowa, kunyatso kutenderera, kuyerwa kwepamhepo, uye otomatiki kutora-up mune imwe inoenderera maitiro. Yakagadzirirwa transformer conductors, CTC conductor kugadzira, enameled rectangular waya, uye EV mota flat flat wire kugadzirwa, mutsetse unowana kumhanya kusvika ku400 m/min. Iyi yakabatanidzwa sisitimu inovandudza kugona uye inoderedza kubata kwezvinhu.

Send Inquiry

Rating: 5.0

(Rating Count: 1)

Product Description

GRM yakabatanidzwa kudhirowa uye mutsara unotenderedza unosanganisa waya kudhirowa, kutenderera chaiko, kuyerwa kwepamhepo uye otomatiki kutora-up kuita imwe inoenderera kugadzirwa. Iyo sisitimu yakagadzirirwa kugadzira yakakwirira-chaiyo yemhangura flat waya inoshandiswa mumagineti waya, transformer conductor, CTC conductor uye EV mota yekushandisa.

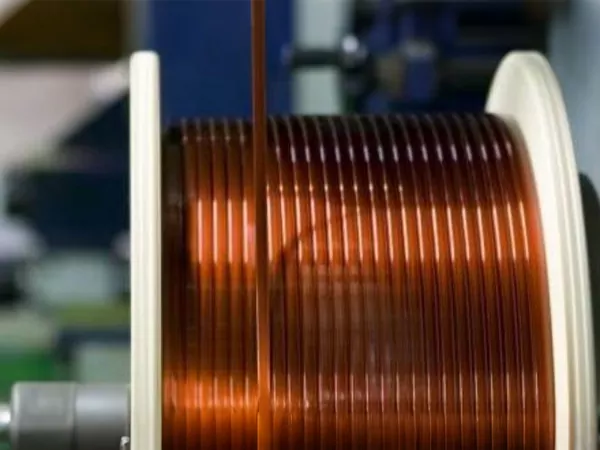

Precision copper flat wire produced on GRM integrated drawing and rolling line

GRM yakasanganiswa flat waya yekugadzira mutsara yakagadzirirwa kuendererakugadzirwa kwewaya yemhangura kuita maconductor akatsetsekanekuomesera dimensional kushivirira uye nemhando yepamusoro yepamusoro.

Nekubatanidza kudhirowa uye kutenderedza maitiro mune imwe yekugadzira sisitimu, mutsara unovandudza zvakanyanya kugadzirwa uku uchidzikisa mabatiro emaoko uye kuchengetedza yakagadzikana chigadzirwa kuenderana mukati menguva refu yekugadzira.

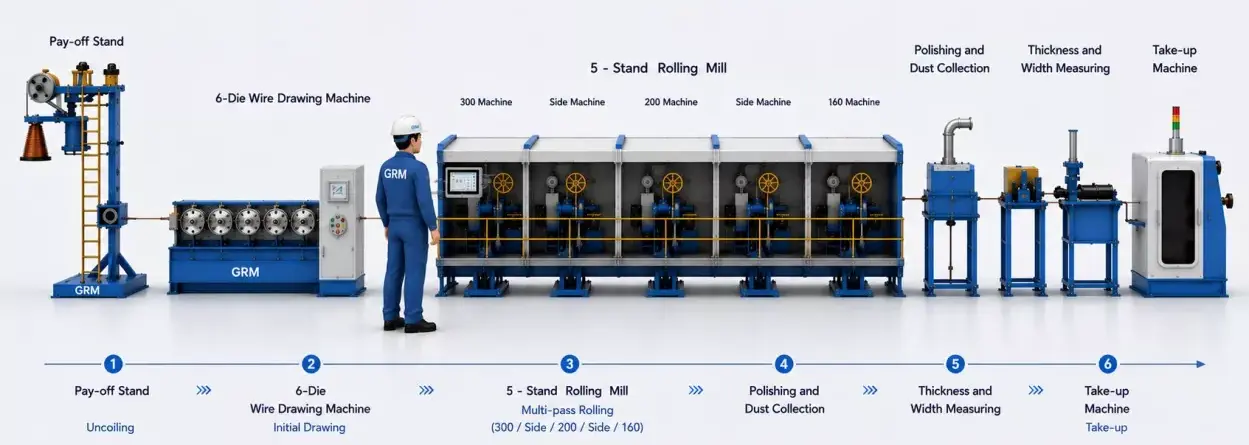

Integrated copper flat wire drawing and rolling line production process

Flexible uye inobudirira dhizaini

Vertical Coil Payoff Stand: 1 set

DLF6D/500 Vatanhatu vanofa Kudhirowa Machine: 1 set

Mipumburu miviri yakarurama Rolling Mill: 3 seti

Side Rolling Mill: 2 seti

Pamhepo Kupukuta uye Dust Kuunganidza Chishandiso: 1 set

Pamhepo Ukobvu uye Upamhi Kuyera Chishandiso: 1 set

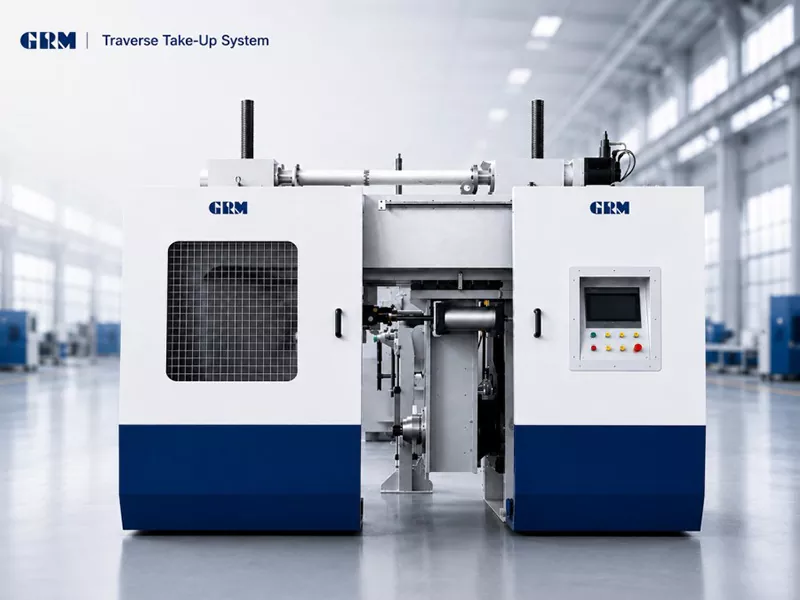

Transverse Take up Machine: 1 set

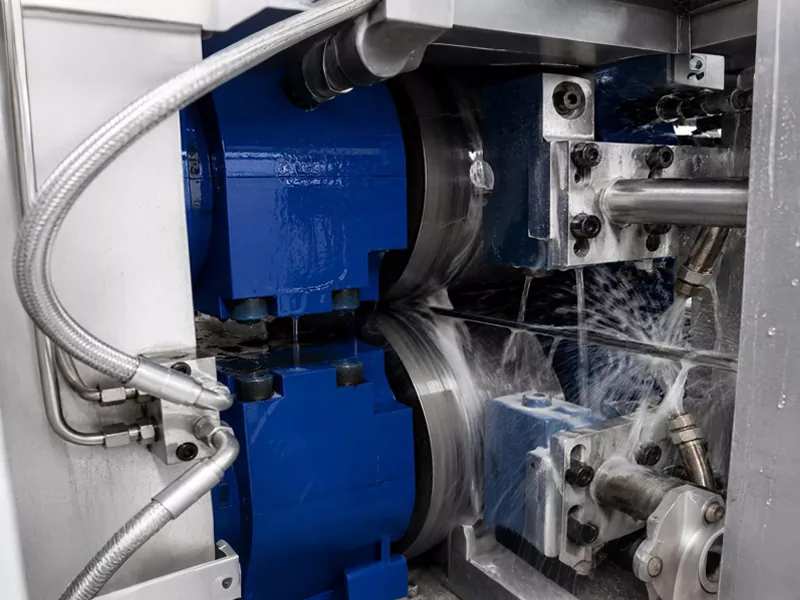

Two-roll precision rolling mill on copper flat wire production line

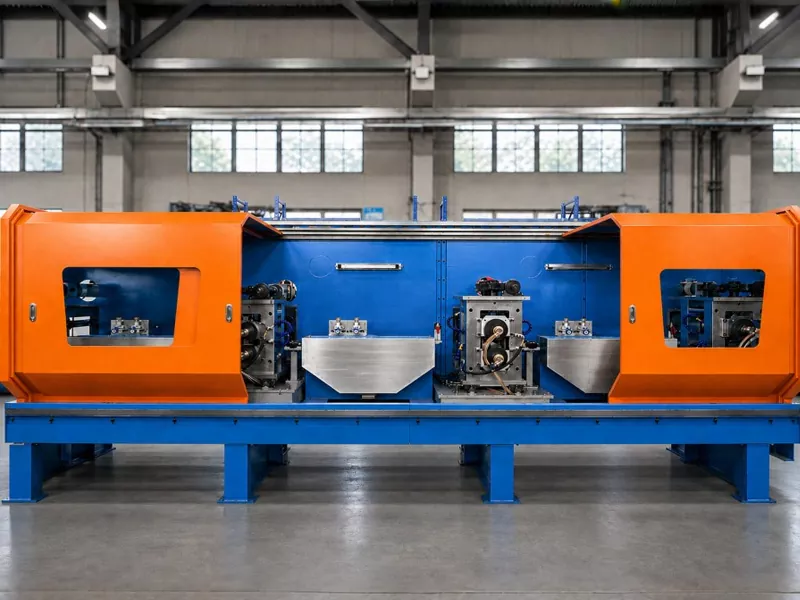

Side rolling mill for copper flat wire width control

Online thickness and width measuring device for copper flat wire

Mutsetse wakakwana wekugadzirwa kweCopper Wire

Iyo Yakabatanidzwa Yekudhirowa uye Rolling Mutsetse wePrecision Copper Flat Wire yakagadzirirwa kuda yakakwira dimensional chaiyo mukugadzira magetsi conductor. Nekumhanya kukuru kwe400 m/min, yakanyatsokodzera hukuru-hukuru hunoramba huchigadzirwa hwemhangura flat wire.

Kuenzaniswa neyakajairwa yakamira inotenderedza maitiro, iyo yakasanganiswa mutsara inobvisa yepakati mabatiro emidziyo uye inova nechokwadi chepamusoro dimensional kuenderana mukati mese kugadzirwa kwekuita.

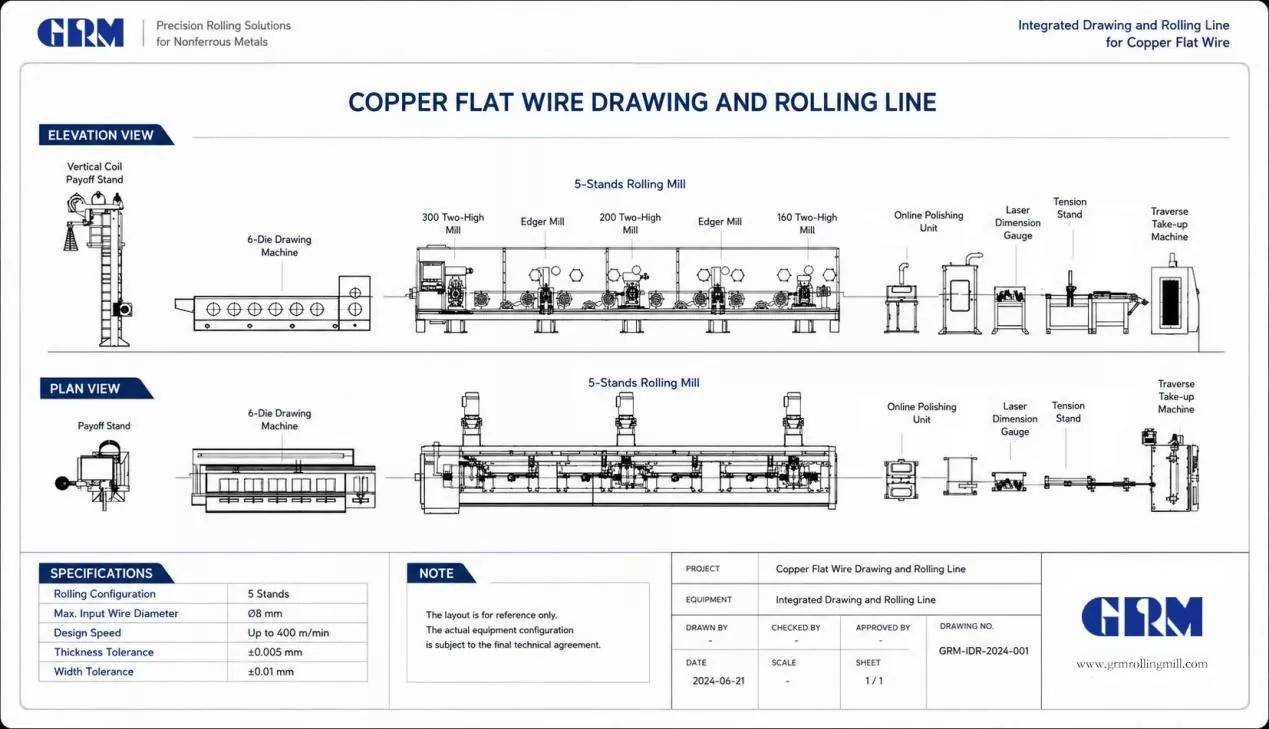

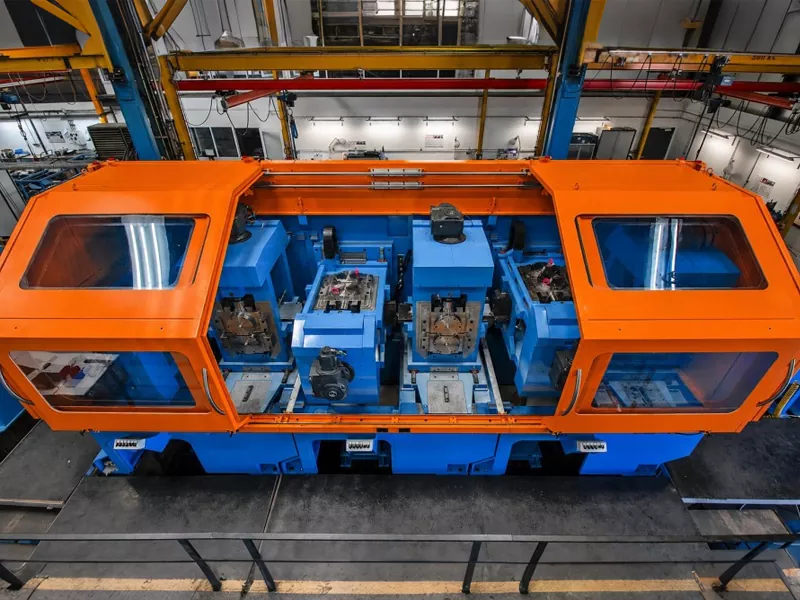

GRM integrated copper flat wire production line with 5-stand rolling mill

* Kugadzira Mutsetse Magadzirirwo Inogona Kugadziriswa Zvinoenderana neMutengi Chigadzirwa Dimensions

ZVAKAITIKA ZVINHU

Kugadzirisa 5-inomira Rolling Mill		GRM
Chekutanga Mbiri-yakakwirira chigayo	Ø mm	300
First Edger mil	Ø mm	155
Chechipiri Chigayo chepamusoro	Ø mm	200
Second Edger mil	Ø mm	155
Chechitatu Chigayo chepamusoro	Ø mm	160
Dhizaini Yekukurumidza	m/min	400
Maximum Intel Wire	Ø mm	8
Akapedza kushivirira	mm	ukobvu: ± 0.005 hupamhi: ± 0.01
Typical Finished Flat wire size range	mm	ukobvu: 2.0-12 upamhi: 0.5-4.0

Typical Applications

Enameled Rectangular Magnet Wire

CTC Inoramba ichishandurwa Conductor

EV Motor Hairpin Conductor

EV Motor Flat Wire Kugadzira

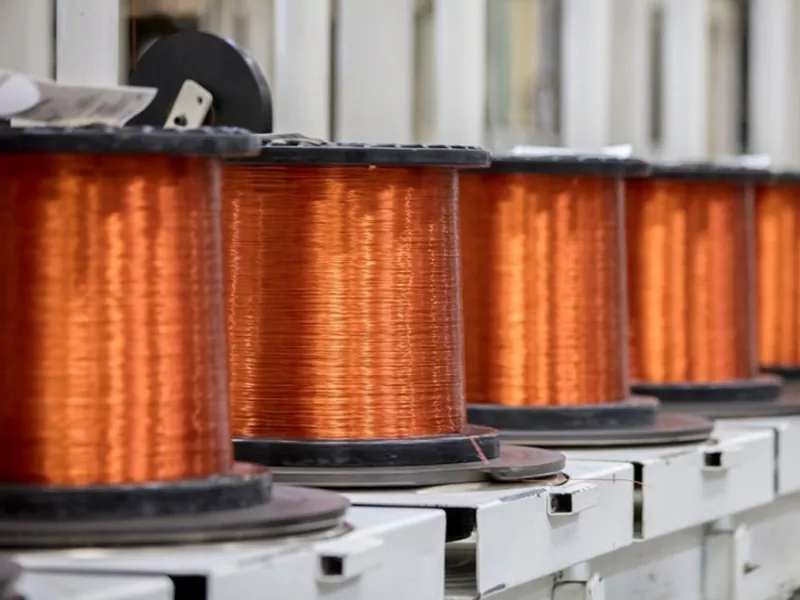

Enameled rectangular magnet wire produced on GRM line

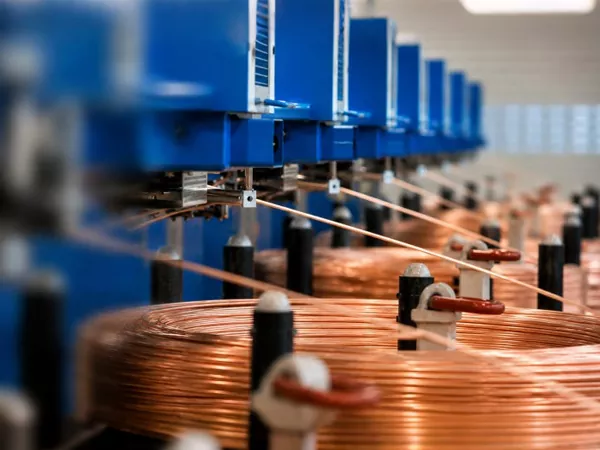

CTC continuously transposed conductor production

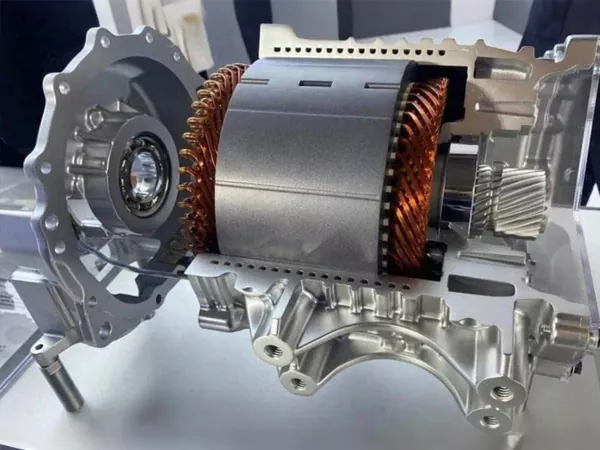

EV motor hairpin conductor flat wire production

FAQ

1. Mutsetse wekugadzira uyu unogona kugadzira waya yemhangura yemhangura yeshanduro yekushandisa?

Hongu, mutsetse wakagadzirirwa kugadzira yakakwirira-chaiyo yemhangura flat waya yetransformer conductor, magnet waya uye mamwe magetsi ekushandisa.

2. Ko Iyo Yakasanganiswa Kudhirowa uye Rolling Line yePrecision Copper Flat Wire inogona kugadzirwa here?

Ehe, GRM inopa yakagadziridzwa mitsara yekugadzira mhinduro zvichibva pane yako yekuisa zvinhu, akapedzwa waya zviyero uye zvinodiwa zvekugadzira.

3. Ndeupi huchokwadi hungagona kuita nemazvo.

Iyo sisitimu inogona kuwana ukobvu kushivirira kusvika ku ± 0.005 mm uye kushivirira kwehupamhi kusvika ± 0.01 mm yekugadzira chaiyo yemhangura flat waya.

4. Sei uchisarudza kudhirowa kwakabatanidzwa uye mutsara wekutenderera panzvimbo pemichina yakasiyana?

Iyo yakasanganiswa yemhangura flat waya yekugadzira mutsara inovandudza kushanda zvakanaka, inoderedza kubata kwezvinhu uye inova nechokwadi chakanyanya kugadzikana chigadzirwa kuenderana.
