Solar PV Ribbon Machine

Solar PV Ribhoni & MBB Wire Manufacturing Solutions

GRM inopa yakakwana kugadzira mhinduro dzePV interconnect ribhoni, PV bhasibha ribhoni uye MBB kutenderera waya kugadzirwa. Yedu yemidziyo portfolio inovhara chaiyo kukungurutswa, annealing, tinning, pamusoro pekurapa uye otomatiki spooling masisitimu, inotsigira kugadzirwa kweakakwira-performance conductor emazuva ano photovoltaic modules.

Yakagadzirirwa kugadzikana kwemhando, chaiyo dimensional control uye yakavimbika-refu-kushanda kushanda, GRM mhinduro dzinobatsira vagadziri kusangana nekukura kuri kudiwa kwepamusoro-simba solar cell interconnection tekinoroji.

Yakazara Equipment Solutions kune Solar Conductors

1

PV Interconnect Ribhoni

2

PV Busbar

3

MBB Round Wire

Interconnect ribhoniinotamisa ikozvino pakati pemasero ezuva,busbar ribhoniinounganidza uye kuendesa ikozvino kune junction bhokisi, ukuMBB yakapoteredza wayainogonesa kushanda kwemodule yepamusoro nekudzikisa kurasikirwa kwe shading.

Aya maconductor anoita basa rakakosha mukubuda kwesimba, kuvimbika uye kuita kwenguva refu module.

Magadzirirwo eSolar Conductor Anogadzirwa

GRM inopa mhinduro dzakakwana dzekugadzira solar conductor kugadzira. Midziyo yeGRM inovhara iyo yakazara yekugadzira mafambiro ekushanda kubva mukunyatso kutenderera uye kusungirira kusvika kune tinning uye spooling mhangura yekugadzira zvinhu kusvika kupedzwa PV ribhoni uye MBB waya zvigadzirwa.

Iyo yakabatanidzwa yekugadzira maitiro inovimbisa kurongeka kwedimensional, yakagadzika coating mhando uye yakakwirira kugadzirwa kwekuita.

1

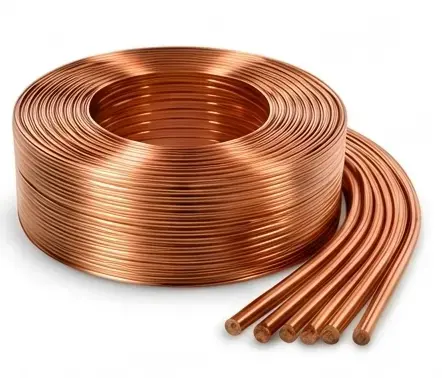

Raw Copper Material

Yakakwirira-kuchena tsvimbo yemhangura seyakagadzirwa

Shamhu yemhangura

Copper Wire

→

2

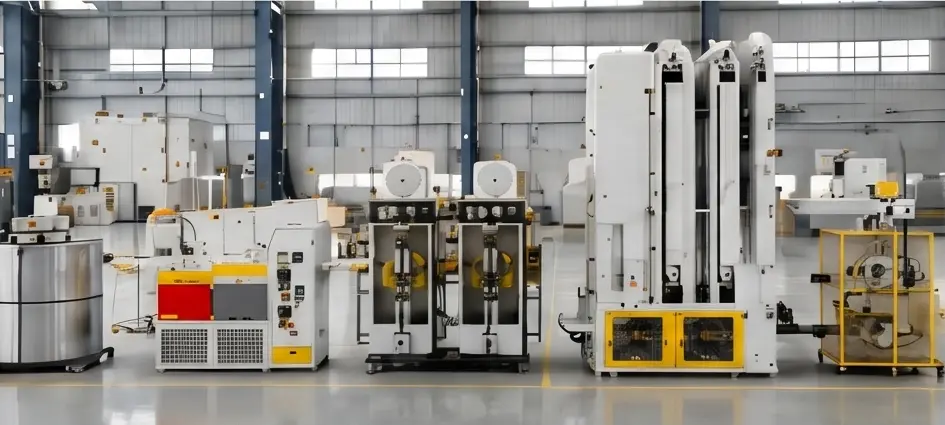

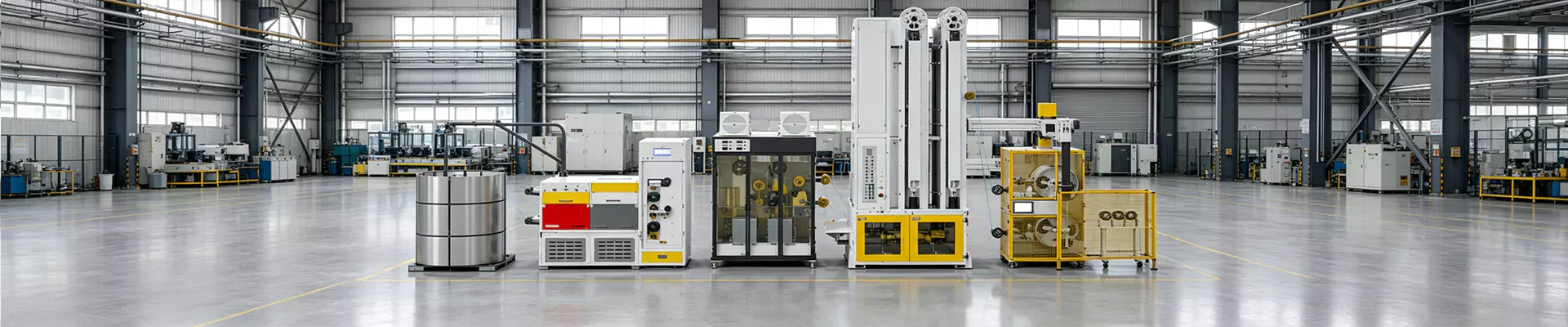

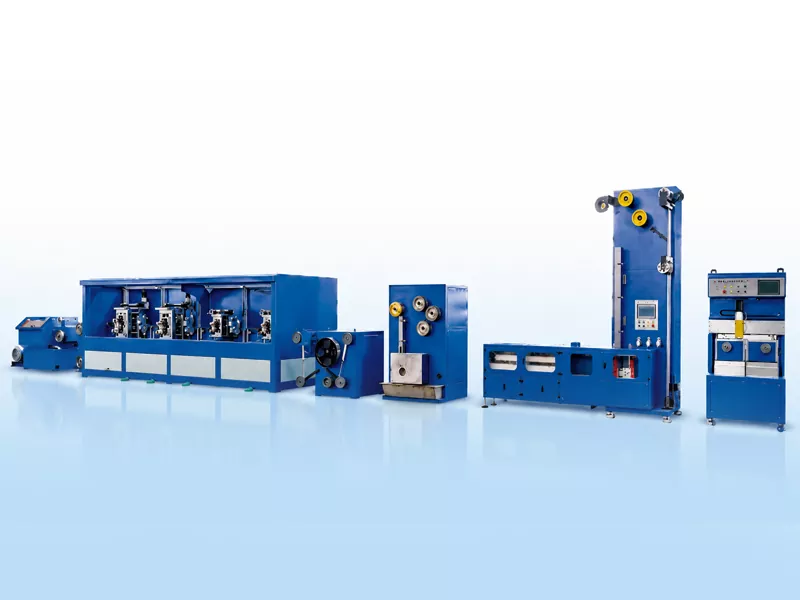

GRM Manufacturing Equipment

Yakazara tambo yekugadzira yekunyatso kuumba, annealing uye spooling

Rolling
Chigayo

Annealing
Furnace

Surface
Kurapa

Spooling
System

Zvemagetsi
Kudzora

→

3

Solar Conductor

Yakakwirira-chaiyo PV ribhoni uye MBB yakatenderera waya

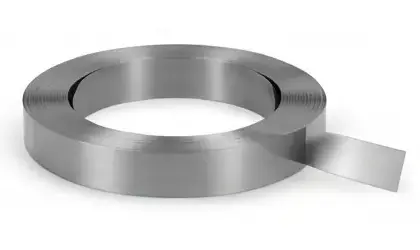

PV Ribhoni

(Interconnect Ribhoni / Busbar Ribhoni)

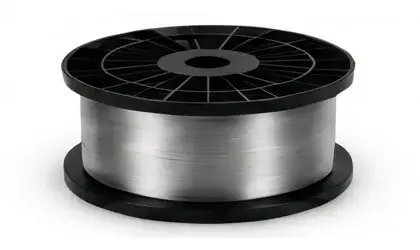

MBB Round Wire

(φ0.20-0.25 mm)

→

4

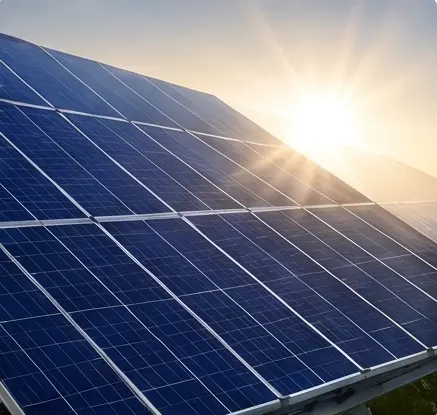

Solar Module

Inoshandiswa mune yakakwirira-inoshanda solar modules

TOPCon
Modules

HJT
Modules

Product Kuenzanisa.

01

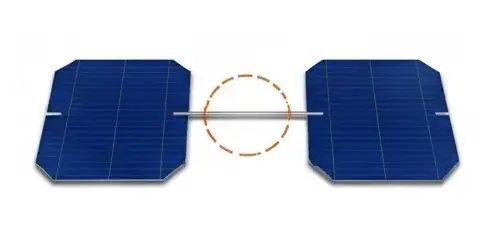

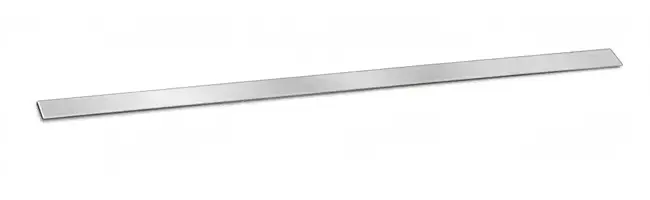

PV Interconnect Ribhoni

(Kubata Ribhoni)

Function

Cell Connection

Upamhi

0.3 - 1.6 mm

Ukobvu

0.10 - 0.25 mm

Application

Sero Stringing

+

Inobatanidza maseru ari pedyo netambo yemodule.

Kubatsira Kwakakosha

Yakavimbika sero-kune-sero kubatana nepamusoro solderability uye yakanakisa conductivity.

02

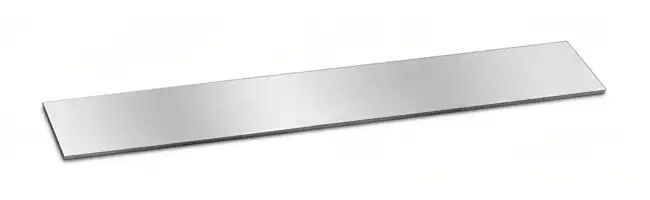

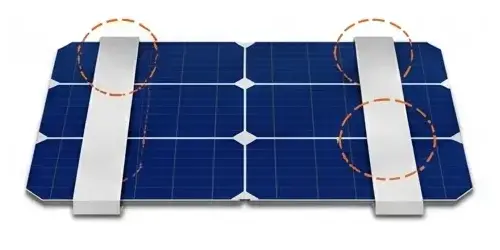

PV Busbar Ribhoni

(Bus Wire)

Function

Current Collection

Upamhi

3.0 - 8.0 mm

Ukobvu

0.20 - 0.50 mm

Application

Module Output

+

Inounganidza zvazvino kubva kumaseru akabatana uye inoendeswa kune junction box.

Kubatsira Kwakakosha

Kudzikira kwakaderera uye yakakwira ikozvino kutakura kugona kune yakanyanya simba kubuda.

03

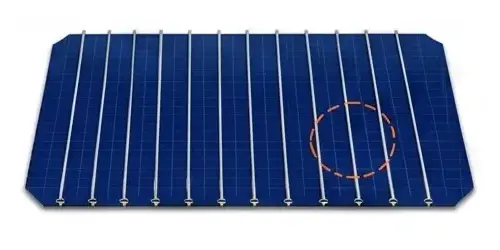

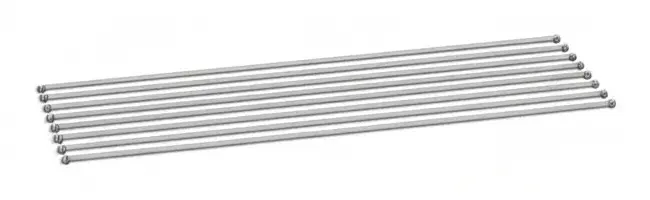

PV MBB Round Wire

Function

Multi-Busbar Connection

Diameter

φ0.20 - 0.26 mm

Ukobvu

–

Application

High-Efficiency Modules

+

Soldered pamusoro sero pamusoro kuderedza shading uye kunatsiridza kushanda zvakanaka.

Kubatsira Kwakakosha

Yakaderedzwa shading kurasikirwa uye zvirinani kushandiswa kwechiedza kwepamusoro module kunyatsoshanda.

PV ribhoni uye MBB yakapoteredza waya inoshandiswa zvakanyanya mukugadzirwa kwepamusoro-soro photovoltaic modules. Nekukurumidza kugamuchirwa kweTOPCon, HJT uye BC maseru tekinoroji, vagadziri vanoda maconductor ane hunyanzvi hwepamusoro, kutengesa zviri nani uye kushanda kwemagetsi kwakagadziridzwa.

Midziyo yeGRM inotsigira kugadzirwa kwemasolar conductor anoshandiswa mu:

Kuvimbwa neVatungamiriri veIndasitiri

Midziyo yeGRM yakapihwa kune inotungamira PV ribhoni uye solar conductor vagadziri muChina nemisika yemhiri kwemakungwa. Kuburikidza nemakore ekushandira pamwe nevadyidzani veindasitiri, GRM yakaunganidza ruzivo rwakakura mukutenderedza conductor, kubatanidza, tinning uye kugadzirisa mashandiro.

Yedu solar PV ribhoni muchina mhinduro dzinotsigira vagadziri vanogadzira makondakita epamusoro-soro solar module uye anobatsira vatengi kuvandudza kugadzirwa, kuenderana kwechigadzirwa uye kuvimbika kwekushanda kwenguva refu.

Tanga Yako Solar PV Production Project

Kunyangwe iwe uri kupinda muPV conductor indasitiri kana kuwedzera huwandu hwako hwekugadzira, GRM inopa yakakwana mhinduro dzemidziyo, hunyanzvi hwekuita uye tsigiro yenguva refu yehunyanzvi.

Bata GRM yea customizedPV ribhoni kana MBB waya yekugadzira mhinduro.

20+

Makore

Precision Rolling Chiitiko

Hunyanzvi hwakakura mukunyatso rolling, kupeta uye conductor kugadzira michina.

10+

Patents

Patented Technology

Multiple patented tekinoroji yekunyatso rolling, tension control uye maitiro ekurapa pamusoro.

100+

Mitsetse Yakaiswa

Indasitiri References

Inovimbwa neinotungamira PV ribhoni uye solar conductor vagadziri pasi rese.

24/7

Technical Support

Lifecycle Service

Rutsigiro rwakakwana kubva pakumisikidza uye kutumira kune kusimudzira uye optimization.

Mibvunzo Inowanzo bvunzwa

1. Chii chinonzi PV ribhoni?

PV ribhoni is flat copper conductor yakavharwa ne solder uye inoshandiswa kubatanidza solar cells mukati me photovoltaic modules.

2. Ndeupi musiyano uripo pakati pe interconnect ribhoni nebhasibar ribhoni?

Interconnect ribhoni inobatanidza masero ezuva, ukuwo bhasibha ribhoni inounganidza uye inotamisa magetsi kubhokisi rejunction.

3.Chii chinonzi MBB round wire?

MBB kutenderera waya inoshandiswa mune akawanda-busbar solar modules kuderedza shading kurasikirwa uye kunatsiridza moduru kushanda zvakanaka.

4.Ndeipi midziyo inodiwa kugadzira PV ribhoni?

Yakazara PV ribhoni yekugadzira mutsara inowanzo sanganisira rolling, annealing, tinning, tension control uye spooling masisitimu.

5.Can imwe yekugadzira mutsara inobereka zvakasiyana ribhoni saizi?

Ehe. GRM masisitimu anogona kugadzirwa kuti agadzirise kugadzirwa uye nekukurumidza kuchinja kwechigadzirwa.
