PV Busbar Ribbon Kugadzira Line

GRM PV Busbar Ribbon Production Line yakagadzirirwa kuramba ichigadzira TU1 isina oxygen-isina mhangura waya waya mune yakakwirira-chaiyo tin-yakavharwa flat conductive ribhoni. Mutsara wakakodzera PV yekubatanidza ribhoni, bhasibha ribhoni, uye inofungidzira bhasibha ribhoni kugadzirwa.
Mutsara wakazara unobatanidza kudhirowa kwewaya, kutenderedza chaiko, kuenderera mberi, kurapa kwekuyerera, kupisa-dip tin coating, uye otomatiki kutora-up. Inobatsira PV ribhoni vagadziri kudzora hupamhi uye ukobvu kurongeka, tin coating quality, strip kutwasanuka, uye kupeta kuenderana.

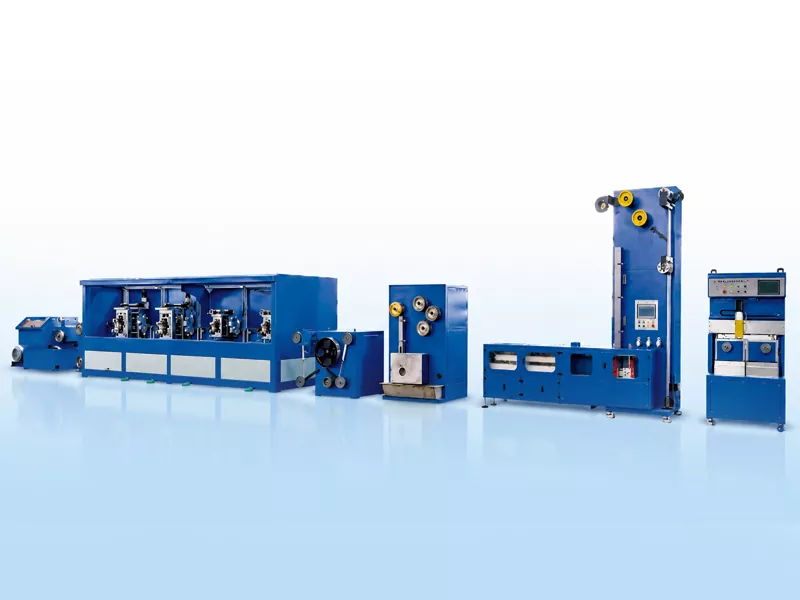

Iyo GRM busbar ribhoni yekugadzira mutsara ingangoita 26 m kureba uye 3 m yakafara, ine huremu hwese hwemutsetse hunosvika gumi nemana matani. Iyo yekumhanyisa dhizaini inogona kusvika kusvika 150 m/min, zvichienderana nehukuru hwewaya yemhangura, zviyero zveribhoni zvakapedzwa, kumhanya kwetinning, uye nzira yekutora. Pasi pezvakajairwa mamiriro ekugadzira, iyo pamwedzi inobuda inogona kusvika angangoita 60-80 matani.

Send Inquiry

Product Description

Kubva kuCopper Wire kuenda kuFinished Busbar Ribbon

Iyo PV Busbar Ribbon Production Line inonyanya kushandisa waya yemhangura seyakagadzirwa. Waya inotanga kudhonzwa kune dhayamita inodiwa pakukunguruka, yobva yaumbwa kuita ribhoni yakati sandara kuburikidza ne-multi-stand precision rolling. Mushure mekukunguruka, tambo yemhangura inopfuura nekuenderera mberi kwekugadzirisa zvimisikidzo zvayo, ichiteverwa nekurapa kwekuyerera uye inopisa-dip tin coating. Pakupedzisira, ribhoni rakapedzwa rinokuvadzwa neiyo otomatiki yekutora-up system pane spools kana mapakeke coils.

Drawing Machine

Waya yemhangura inodhonzwa kuburikidza nekufa kusvika kudhayamita ye2.6-3.0 mm, yakagadzirira kukungurutswa.

4 Roll Stand

Waya yendarira yakatenderedzwa inokungurutswa kuita ribhoni yakati sandara, ine hupamhi hunodzorwa nekukobvu nemazvo.

Annealing

Short-circuit annealing inoshandiswa neinert gasi kudzivirira uye inotenderera kutonhora kwemvura kunatsiridza michina yemhangura ribhoni.

Tin Coating

Kupisa-dip tin coating inoshandiswa. Mapanga emhepo anodzora ukobvu hwerata, uye mafeni ekutonhodza anobatsira kudzikamisa kunaka kwepasi. Single-side tin coating ukobvu: 0.01-0.025 mm.

Automatic Coil Chang

Optional mabasa anosanganisira servo kuyambuka, otomatiki spool shanduko, otomatiki kucheka, uye otomatiki taping.

Precision Kutora-up

Spool winding: kusvika ku30 kg.

Pancake coil mhepo: sarudzo 1-2 kg.

R&D uye Patents

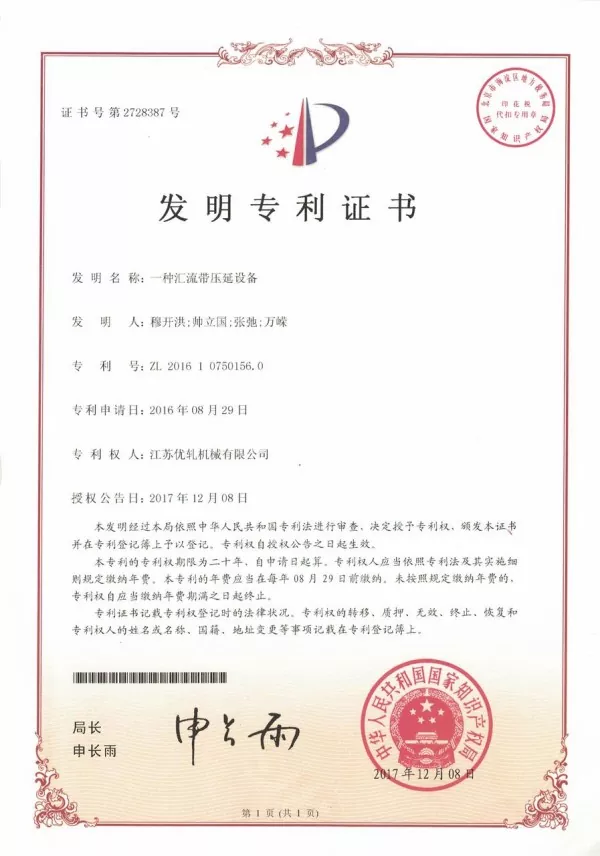

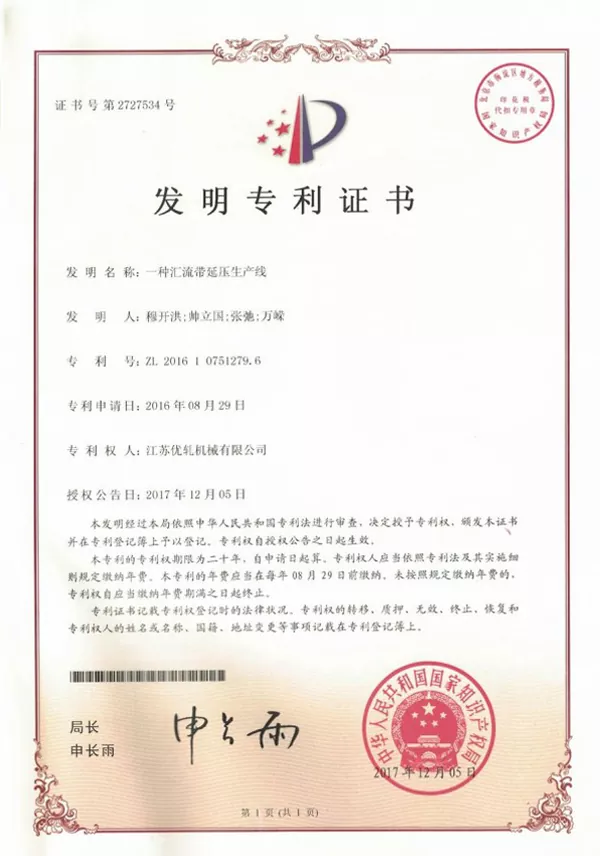

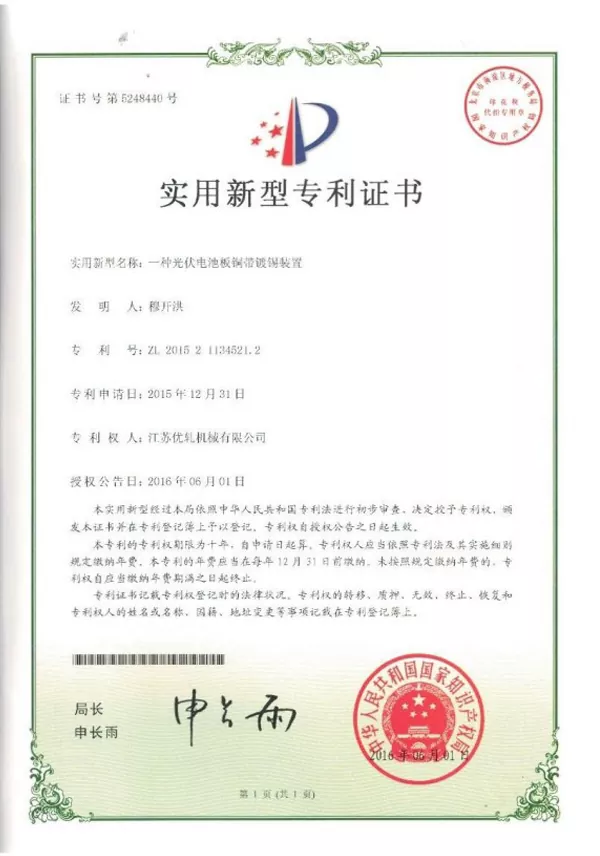

Kubva 2015, GRM yakaramba ichigadzira michina yekugadzira yePV yekubatanidza ribhoni uye bhasibha ribhoni. Iyo kambani yakawana akawanda tekinoroji patent ane chekuita nekurongeka, kugadzira mutsara wekubatanidza, uye PV ribhoni kugadzira maitiro.

GRM Patented Technologies yePV Ribbon Manufacturing Equipment

Key Features

Kuenderera mberi kugadzirwa kubva kumhangura waya yekupinza kusvika pakupera tin-yakavharidzirwa bhasibha ribhoni kubuda.
Kuvandudzwa kwedimensional kuenderana, coating kufanana, uye mamhepo mhando.
Tension coordination uye otomatiki kutora-up kunobatsira kuderedza kukanganiswa kwekugadzira uye kupindira kwemaoko.
Inotsigira ese akajairwa busbar ribhoni uye inoratidzira bhasibha ribhoni kugadzirwa kune akasiyana PV module zvinhu zvinodiwa.
Inopa vagadziri vePV ribhoni ine yakasanganiswa yekugadzira mhinduro yakatarisana nekutonga kwemaitiro, kuenderana kwechigadzirwa, uye kugona kugadzira.

Mibvunzo Inowanzo bvunzwa

1.Chii chakapedzwa saizi yechigadzirwa?

Yakapedzwa hupamhi: 3-8 mm.

Kupedzwa ukobvu: 0.2-0.4 mm.

2.Ndeapi ma tolerance uye mechanical property ranges?

Upamhi kushivirira: ± 0.085 mm.

Ukobvu kushivirira: ± 0.01 mm.

Kusimba kwesimba: ≥260 MPa.

Goho simba: 90-130 MPa.

3.Ndeipi tin coating nzira inoshandiswa?

Mutsara unoshandisa hot-dip tin coating, ine chivharo chizere chakatenderedza ribhoni, kusanganisira ese ari maviri mativi.

4.Kuwanda kwechigadzirwa uye ukobvu kunoyerwa sei?

Chigadziko chechina chechigayo chechina chinokunguruka chine masisitimu maviri ekuyeresa laser, imwe yekuyera kwehupamhi uye imwe yekuyera ukobvu. Iyo data yekuyera inogona kuratidzwa paHMI.

5.Ndezvipi zvinhu zvinogona kugadziriswa?

Iyo PV Busbar Ribbon Production Line inonyanya kugadzirirwa TU1 oksijeni-isina waya yemhangura. Magadzirirwo akagadzirwa anogona kupihwa zvinoenderana neakasiyana emhangura alloys, zviyero zvechigadzirwa, uye yakakosha ribhoni zvinodiwa.
