CTC Inoramba ichishandurwa Conductor Line

Iyo GRM Rolling Mill CTC Inoramba ichishandurwa Conductor Line inodada nekushanda kwakadzikama uye kurongeka kwepamusoro, inotsigira kukurumidza kugadziridzwa uye yakagadziridzwa masisitimu, uye inoshandiswa zvakanyanya kune chaiyo kugadzirwa kwewaya mu transformer, mota nyowani yemagetsi, mudziyo wepamba, wekurapa, uye nzvimbo yemagetsi minda yemagetsi. Taura nesu!

Send Inquiry

Product Description

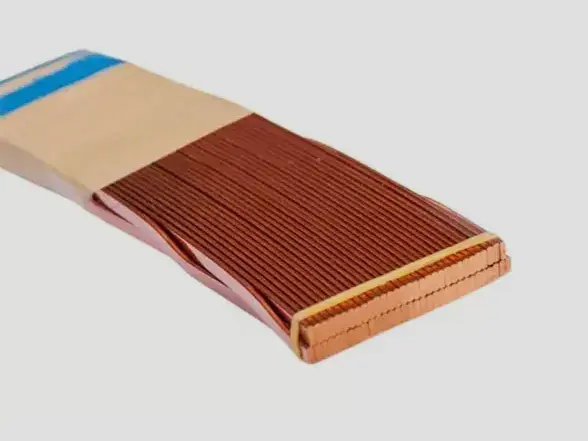

GRM Rolling Mill's CTC Inoramba Ichishandurwa Conductor Line inoramba ichipfuudza kubva pa5 kusvika ku47 tambo nekuisa inotonhora-inoshanda, isina oxygen-isina waya yemhangura yakapfava ine insulating varnish uye nekuiputira nebepa rekudzivirira uye zvimwe zvekudzivirira. Makondukita anobva asungirirwa kuita compact uye yakarongwa zvakanaka rectangular cross-section conductor bundle.

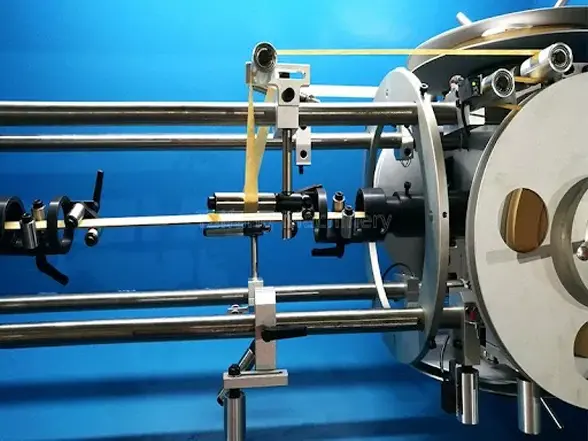

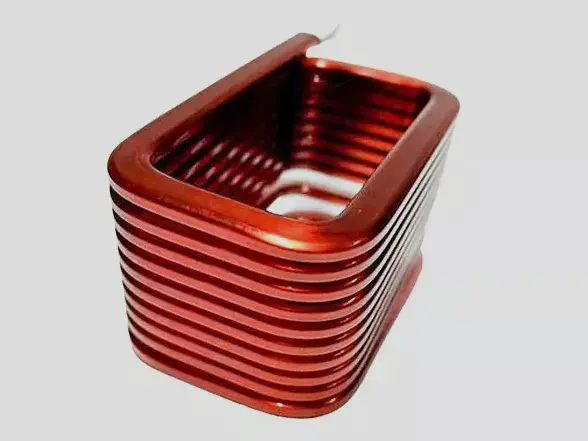

CTC Continuously Transposed Conductor Line

CTC Continuously Transposed Conductor Line for EV components

CTC Continuously Transposed Conductor Line for Household appliances

CTC Continuously Transposed Conductor Line for Medical devices

CTC Continuously Transposed Conductor Line for Aerospace electrical assemblies

Application Industries

1. transformer windings

2. EV zvikamu

3. Midziyo yemumba

4. Zvishandiso zvekurapa

5. Aerospace magetsi magungano

Main Process Flow

Kubhadhara → Kufambirana Nhungamiro → Kunyatsochinja

Zvidimbu zvehunyanzvi

Single Conductor Parameters	Min	Max
Ukobvu	1.15mm	3.15mm
Upamhi	3.0mm	12.5mm
Width/Thickness Ratio	3:1	8:1
Enamel Kukora	0.08mm	0.18mm

CTC Conductor Parameters	Min	Max
Production Speed	1 m/min	15 m/min
Nhamba yeVafambisi	5 (zvisinganzwisisiki)	47 (zvisinganzwisisike)
Urefu (mm)	5.0	80.0
Upamhi (mm)	6.0	26.0
Transposition Pitch (mm)	20	280
Height/Width Ratio	1:3	8:1
Transposition Push Speed	colspan=“2”	150 nguva / min

Key Features

1. Precision transposition system yekugadzika conductor alignment

2. CTC Inoramba ichishandurwa Conductor Line inogona kuenderana neenamel-yakavharidzirwa flat copper conductors.

3. Optional insulation bepa kuputira unit

4. Servo-inodzorwa tension uye winding system

Technical Advantages

Nzvimbo yekugadzira yeGRM yakashongedzerwa neinternet coating uye yekuongorora masisitimu anokwanisa kugadzirisa specialty magineti waya ane akawanda-layer enamel coatings. Fresh coating process mukati meiyo nzvimbo imwe chete inovandudza magetsi kuramba kuita uye inosimudzira conductor yepamusoro mhando. Kuenderera mberi kwekutarisa kwepamhepo kunoenderera mberi kunovimbisa kuwirirana kwedimensional uye kugadzikana kwekushanda kwenguva refu.

FAQ

1. Chii chinonzi CTC conductor?

CTC (Inoramba ichishandurwa Conductor) irectangular conductor bundle yakagadzirwa nekuramba ichiisa akawanda insulated flat conductors kuderedza eddy ikozvino kurasikirwa mumashanduri.

2. Ndezvipi zvinhu zvinogona mutsara muitiro?

Mutsetse wacho unonyanya kugadzirirwa enamel-yakavharwa okisijeni-isina flat copper conductors uye zvine chekuita nemagineti waya.

3. Mushini unogona kugadzirwa here?

Ehe. GRM inopa zvigadziriso zvakajairwa zvinoenderana nehukuru hwekondukita, kumhanya kwekugadzira, chimiro chekudzivirira, uye chimiro chechirimwa.

Wakagadzirira Kuvandudza Magnet Wire Yako Kugadzira?

Bata GRM kune yakasarudzika CTC conductor yekugadzira mhinduro dzakagadzirirwa chaiyo flat waya kugadzirisa, transformer application, uye advanced magineti waya kugadzira.
