Mafambisirwo Akaitwa Flat Wire Rolling Mills Akavandudza Copper Wire Hunhu uye Kuburikidza

● 2026-10-12 ● - ● Ndisiire meseji

Kutora pamakore gumi nematanhatu eruzivo rwekugadzira simbi paJiangsu Goodroller Machinery Co., Ltd. (GRM), nyaya ino inoongorora kuti mazuva anoFlat Wire Rolling Mills-kunyanya modular Mbiri-Yepamusoro uye ina-Yepamusoro masisitimu - unza mibairo inoyerwa mumhangura flat waya mhando uye kubuda. Isu tinovhara izvo zvehunyanzvi zvehunyanzvi, enzanisa zvigadziriso mutafura yakarongeka, kugovera chaiyo-yepasirese mashandisirwo emamiriro epasirese transformer, photovoltaic, uye EV mota zvikamu, uye tinopindura mibvunzo iyo vagadziri vanotibvunza kazhinji.

Sei Rolling Inorova Dhirowa yeCopper Flat Wire

Ndapedza makore anopfuura gumi ndichiona vagadziri vemhangura flat waya vachirwa nekutengesa kumwe chete: kudhirowa kunokupa chimiro, asi zvakare kunokupa iwe kupfeka kufa, kuremara kwepasi, uye sirin'i pakumhanya kwemutsara. Rolling inoshandura iyo equation. Paunopfuudza waya yemhangura yakatenderedza kuburikidza neakatevedzana echaiyo roll inomira panzvimbo pekuidhonza nekufa, iwe unobvisa kufa kurasikirwa zvachose uye unowana mwero wekudzora dhizaini isingagone kuenderana.

KuGRM, tanga tichikwenenzvera nzira iyi kubva kwatakabva seZhangjiagang Hongxinyuan Technology muna 2008. Mushure mekugadzirisa zvine hungwaru muna 2015, takawedzera zvakapetwa kaviri pane zvatinoita zvakanyanya - kugadzira zvigayo zvine hungwaru zvinogadzirisa mabhodhoro chaiwo ekugadzira. TheFlat Wire Rolling Millsisu tinovaka nhasi mhedzisiro yekutarisa ikoko.

The core advantage is mechanical. Kukungurusa kunokanganisa simbi kuburikidza nekumanikidzira masimba pakati pemapumburu anotenderera, zvinoreva:

Hapana kupfeka kwekufa.Hupenyu hweRoll hunoyerwa mumwedzi, kwete kuchinja, uye kutsiva roll kunofungidzirwa kwete kuita.
Kupera kurinani kwepamusoro.Cold rolling inoburitsa yakapfava, yakanyatso yunifomu pane kudhirowa - yakakosha kune yakadzika enameling kana plating.
Kumhanya kwemutsetse wepamusoro.Pasina kupokana uye kupisa kuvakwa kwekudhirowa kwekufa, unogona kusundira kuburikidza nekukwira zvakanyanya. Yedu yakasanganiswa yemhangura flat waya yekugadzira mitsetse inosvika dhizaini yekumhanya ye400 m/min.
Tighter tolerances.Iko kusanganiswa kwechigayo chepamusoro-chigayo chinomira uye mhinduro yekuyera yepamhepo inotitendera kuti tibate kushivirira kwakakora kunge ± 0.005 mm.

Mukuita, ndakaona vatengi vachicheka mitengo yavo yekushandura per-ton ne15–25% nekungochinja kubva pakudhirowa-based flat wire process kuenda kune yakabatanidzwa yekutenderedza tambo. Iyo haisi nhamba yetioretical - inobva mukuderedzwa kwekushandisa kwekushandisa, kushomeka kwemhando yekurambwa, uye nekukurumidza kutenderera nguva.

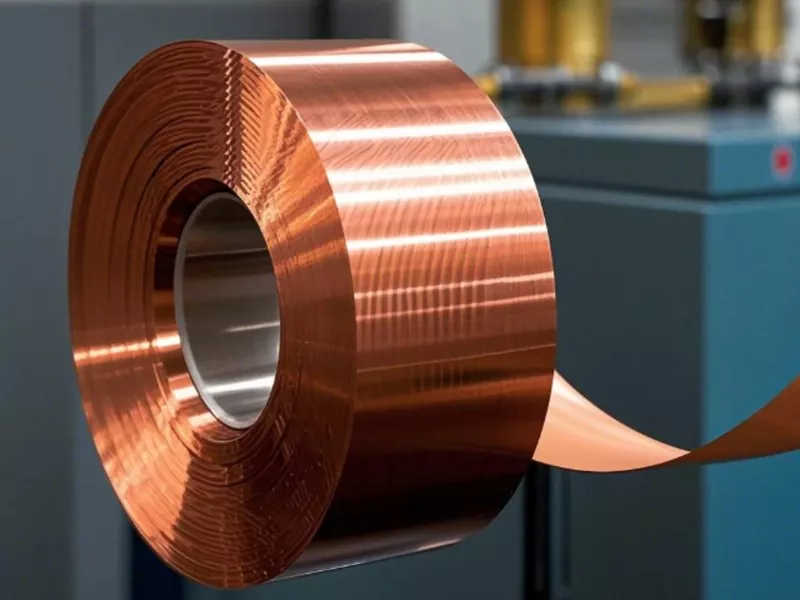

Flat Wire Rolling Mills

Iyo Flat Wire Rolling Mill Inoshanda chaizvo

Vanhu vanowanzondibvunza kuti chii chaizvo chinoitika mukati aFlat Wire Rolling Mill. Nheyo yacho yakatwasuka, asi iyo engineering kuseri kwayo haina.

Mutsetse wakajairika wakabatanidzwa unotanga neiyo yakatwasuka coil payoff inodyisa waya yemhangura yakatenderedza - kusvika kuØ8 mm mune yedu yakajairwa zvigadziriso - muchikamu chedhirowa yakawanda. Kubva ipapo, waya inopfuura nemunhevedzano yema roll stands. Imwe neimwe stand inoderedza ukobvu uye, kana yakashongedzerwa needging rolls, inodzora hupamhi. Pakati pezvikwiriso, kukwenenzverwa kwepamhepo uye kuunganidzwa kweguruva kunochengetedza nzvimbo yakachena. Pakupedzisira, iyo laser-yakavakirwa ukobvu uye hupamhi hwekuyera sisitimu inopa chaiyo-nguva mhinduro kuPLC, iyo inogadzirisa otomatiki mipumburu kubhadharira kuwedzera kwemafuta, kupfeka kwema roll, kana zvinopinda zvinhu zvakasiyana.

Hezvino izvo zvinoita senge mune yakajairwa GRM mutsara kumisikidzwa:

Yakajairika GRM Precision Mhangura Flat Wire Production Line — Standard 5-Stand Configuration
Chikamu	Tsanangudzo	Quantity
Vertical Coil Payoff Stand	—	1 set
Vatanhatu-Kufa Kudhirowa Machine	DLF6D/500	1 set
Yekutanga Mbiri-Yepamusoro Rolling Mill	Ø300 mm	1 chikwata
First Edger Mill	Ø155 mm	1 chikwata
Yechipiri Mbiri-Yepamusoro Rolling Mill	Ø200 mm	1 chikwata
Second Edger Mill	Ø155 mm	1 chikwata
Yechitatu Mbiri-Yakakwirira Rolling Mill	Ø160 mm	1 chikwata
Online Polishing & Dust Collection	—	1 set
Online Hukobvu & Kuyera Kuyera	Laser-based, yakavharwa-loop	1 set
Transverse Take-Up Machine	Automatic winding	1 set

Mutsetse uyu unomhanya nekumhanya kwekugadzira 400 m/min uye unogadzira waya inopinda kusvika kuØ8 mm muwaya yakapedzwa yakatsetseka ine ukobvu kubva pa2.0–12 mm uye hupamhi kubva pa0.5–4.0 mm. Pawaya yakapfava - funga photovoltaic ribhoni kana precision micro flat waya - tinogadzirisa imwe setup ine madhayamita madiki emupumburu uye kukurumidza kumhanya reshiyo.

Mbiri-Yakakwirira vs. Ina-Yepamusoro: Kusarudza Kugadzirisa Kwakarurama

Uyu ndiwo mubvunzo wandinonyanya kuwana kubva kumamaneja ekugadzira achiongorora mutsara mutsva. Mhinduro pfupi: zvinoenderana nekudya kwako uye chako chapedzwa chigadzirwa zvinodiwa. Mhinduro yakarebesa inosanganisira mamwe maitiro einjiniya ekuchinjanisa.

YeduFlat Wire Rolling Millsshandisa modular dhizaini inotsigira angave maviri-Yepamusoro Rolling Mill mayunitsi kana mana-Yepamusoro Rolling Mill mayunitsi, uye muzviitiko zvakawanda, hybrid kumisikidzwa inoshanda zvakanyanya.

Two-High vs. Four-High Rolling Mill - Kuenzanisa kweCopper Flat Wire
Parameter	Two-High Rolling Mill	Four-High Rolling Mill
Roll kuronga	Mipumburu miviri yebasa, kusangana kwakananga nezvinhu	Mipumburu miviri yebasa + mipumburu miviri yekudzosera
Typical work roll dhayamita	160–300 mm (GRM chiyero chiyero)	Madiki ebasa ma rolls, makuru back-up rolls
Kuderedza kugona	Zvine mwero pakupasa; yakanakira roughing uye yepakati inopfuura	Kuderedzwa kwepamusoro papasi; zviri nani pakupedzisa uye mageji matete
Dimensional kururama	Kugona; ± 0.01 mm hupamhi hunowanikwa needger	Excellent; ± 0.005 mm ukobvu hunogoneka
Surface quality	Yakanakira general flat wire	Superior; zvakakosha pakugadzira enameling uye plating
Typical application stage	Roughing uye pakati kukunguruka	Kupedza kukunguruka, mutsetse mutete, high-aspect-ratio waya
Maintenance yakaoma	Lower; mashoma ekugadzirisa	Higher; back-up roll kugadzirisa kunodiwa
Yakanyatsokodzera	Transformer conductors, CTC, hombe muchinjiko-zvikamu	EV hairpin waya, chaiyo yekubatanidza, nhete PV ribhoni

Mutemo wangu wegumbo: kana chigadzirwa chako chakapedzwa chakakora kupfuura 3 mm kana yakafara kupfuura 6 mm, tanga neTwo-High configuration yehuwandu hwekuderedza, wobva wawedzera Four-High yekupedzisa kumira kana iwe uchida kushivirira kwakasimba. Kune chero chinhu chakatetepa - funga EV hairpin conductors kana yakanaka photovoltaic ribhoni - enda Four-High kubva padanho rekupedzisa zvichienda mberi. Iwo madiki ebasa anotenderedza mu Four-High mill inoshandisa yakakwirira yekubata kudzvanywa ine shoma roll flattening, ndizvo chaizvo zvaunoda paunenge uchimhanyisa micron-level ukobvu control.

Takaendesa zvigadziriso zvese kune vatengi mukati memagetsi, kugadzirwa kwemidziyo, chaiyo zvitubu, uye photovoltaic itsva simba zvikamu. Iyo modular nzira inoreva kuti mutengi anogona kutanga nembiri-Yepamusoro mutsara uye owedzera ina-Yepamusoro inomira gare gare sezvo chigadzirwa musanganiswa wavo unoshanduka - pasina kurasa mari yese.

Hunhu Hunowanikwa Iwe Unogona Kuyera

Pandinotaura nevakuru vemhando, havadi zvipauro. Vanoda nhamba. Saka hezvino izvo zvedu Flat Wire Rolling Mills zvinounza mukugadzira:

Ukobvu kushivirira:± 0.005 mm pawaya yemhangura yakapera yakapedzwa pasi pemamiriro akagadzikana. Icho chinenge chikamu chimwe muzvishanu kukora kwebvudzi remunhu, rakabatwa nguva dzose pamusoro pekoiri yese.

Width tolerance:± 0.01 mm, inotungamirwa nemagayo emupendero anogara pakati pemakuru ekutenderedza.

Kururama:Iko kusanganiswa kwepfupi-kushushikana-mutsara roll dhizaini uye chaiyo tension control pakati pezvikwiriso inoburitsa waya yakati sandara ine kutwasuka kwakanakisa - yakakosha kune otomatiki mhepo uye pasi pemvura kugadzirisa.

Surface finish:Iyo yepamhepo polishing uye guruva yekuunganidza sisitimu inobvisa inokunguruka marara isati yapinda mukati. Kune vatengi vanoisa enamel kana plate waya yavo yakapfava, izvi zvinoshandura zvakananga muhushoma hurema hwekubatisa uye nepamusoro dielectric simba.

Ini ndinofanira kutaura chimwe chinhu chisingawanzo kuratidzira mumashiti akasarudzika: kuenderana kune coil. Chinhu chimwe chete kurova ± 0.005 mm pane bvunzo sampuli. Ndiyo imwe kubata iyo kushivirira kubva pamita yekutanga kusvika kune yekupedzisira. Iyo yakavharwa-loop yekudzora sisitimu - laser kuyerwa kudyisa kudzokera kuPLC, iyo inogadzirisa mapeji emupumburu munguva chaiyo - ndiyo inoita kuti zviitike. Isu takaita kuti vatengi vatiudze mitengo yavo yekurambwa yakadzikira neinopfuura hafu mushure mekuchinjira kumutsara weGRM, nekuda kwekusiyana kwedimensional kubva kucoil kuenda kune coil kwaenda.

Kuburikidza Kuwana: Kunobva Kumhanya Kunobva

Speed ndiyo nhamba yemusoro, asi ini ndinoda kuva akatendeseka nezve kwainobva chaiko.

Yedu yakajairwa yakasanganiswa yemhangura flat waya mutsara yakayerwa kune yakakura dhizaini yekumhanya ye400 m/min. Enzanisa izvozvo kune yakajairwa mutsara wekudhirowa unomhanya pa150-200 m/min kune anofananidzwa muchinjiko-zvikamu, uye iwe uri kutarisa ingangoita 2 × kuburikidza nekubuda mukana usati watombokonzeresa mukubvisa shanduko yekufa uye yakabatana downtime.

Asi iyo chaiyo throughput nyaya haingori mutsara kumhanya. Yasvika nguva uye goho:

Kuderedzwa kwemaoko kubata.Nekuti kudhirowa, kutenderedza, kuyerwa, uye kutora-kumusoro zvakabatanidzwa mune imwe inoenderera muitiro, hapana chikonzero chekumira uye kufambisa makoiri pakati pematanho. Izvo chete zvinogona kudzoreredza maawa 2-3 enguva yekugadzira pane imwe shift.
Kumira zvishoma zvisina kurongwa.Hapana anofa kutsiva zvinoreva kuti hapana pakati-coil kuvhiringidzwa kwechishandiso chekuchinja. Iyo roll gap inogadziriswa ine mota uye inofambiswa neresipi, saka shanduko pakati pechigadzirwa saizi inotora maminetsi pane maawa.
Goho repamusoro.Kushivirira kwakasimba kunoreva kuti zvinhu zvishoma zvinoenda kumarara. Kune mugadziri wecopper flat waya anomhanyisa matani mazana mashanu pamwedzi, kuderedza kurambwa kubva pa3% kusvika 1.5% kunochengetedza matani 7.5 emhangura mwedzi wega wega - nhamba ine musoro pamitengo yemhangura iripo.
Kutora otomatiki.Iyo inochinjika yekutora-up muchina mhepo yakapera waya otomatiki, ine kusagadzikana kunoenderana uye pasina kupindira kwemaoko. Izvi zvinoderedza zvese mutengo wevashandi uye njodzi yekukuvadzwa kwecoil panguva yekubata.

Mune imwe purojekiti ichangoburwa, mutengi anomhanyisa shanduko yemhangura flat waya akatsiva mitsara miviri yekudhirowa neiyo imwe GRM yakabatanidzwa yekutenderedza tambo. Kubuda kwavo pamwedzi kwakabva pamatani zana nemakumi masere kusvika pamatani mazana matatu negumi nemusoro wakafanana. Masvomhu pakubhadhara aive pasi pemwedzi gumi nemasere.

Application Snapshots: Kunomhanya Mamiriro Edu

Yedu Flat Wire Rolling Mills haisi imwe-saizi-inokodzera-ese chigadzirwa. Iyo modular dhizaini iripo chaizvo nekuti maindasitiri akasiyana ane zvakasiyana zvinodiwa. Heino kukurumidza kutarisa kuti iyo gadziriso inochinja sei mumatatu akakosha masekete:

Anwendung-Chaiyo Configuration Guide
Indasitiri	Typical Yakapedzwa Flat Wire	Recommended Configuration	Chinodiwa Hunhu Hwakakosha
Transformer conductors	Ukobvu 2.0-12 mm; Upamhi 0.5–4.0 mm	5-stand Two-High + Edger	Dimensional kuenderana, magetsi conductivity
Photovoltaic ribhoni	Ukobvu 0.05–0.20 mm; Upamhi 0.2–2.0 mm	Multi-stand Four-High	Ukobvu kushivirira ≤ ± 0.005 mm kuti yunifomu solderability
EV mota hairpin conductors	Ukobvu 1.0–3.0 mm; Upamhi 3.0–8.0 mm	Mbiri-Yepamusoro roughing + Ina-Yepamusoro kupedzisa	Edge contour, kutwasanuka kweotomatiki mamhepo
Precision zvitubu & zvibatanidza	Ukobvu 0.1–1.0 mm	Ina-Yakakwirira nekupenya	Surface kupedzisa, kona radius control

Iyo photovoltaic application ndeimwe yandakaona kushivirira kunodiwa kusimba zvakanyanya mumakore matatu apfuura. Sezvo maseru ezuva anotaridza kushanda zvakanaka, vanogadzira ribhoni vari kukumbirwa kuti vabate ukobvu kusiyanisa mukati me ± 0.005 mm pane iyo coil yese. Iwo ekare ekudhirowa-akavakirwa maitiro anonetsekana neizvi nekuti kufa kupfeka kunoshandura chikamu-chikamu zvishoma nezvishoma pamusoro pehurefu hwecoil. Kukunguruka, neyakavharwa-loop mhinduro, inoibata yakatsiga.

Kune EV hairpin conductors, dambudziko rakasiyana. Iwe unoda yakachena mupendero contour - iyo R-angle padivi petambo yakatsetseka inofanirwa kunge iri yunifomu, nekuti chero kusarongeka kunoratidza senge isina kusimba poindi yekutenderera kwe stator. Isu tinogadzirisa izvi neakazvitsaurira mill mill uye yekupedzisa pass inonyatso kudzora kona geometry.

FAQ

Ndezvipi zvinhu zvinogona kuitwa neFlat Wire Rolling Mill process?

Zvigayo zvedu zvakagadzirirwa simbi yemhangura nemhangura, asi chikuva chimwechete chinobata aruminiyamu, silver-plated mhangura, tin-plated copper, nickel-copper, uye akasiyana alloy waya anoshandiswa mumagetsi nemagetsi. Iyo roll zvinhu uye kurapwa kwepamusoro zvinosarudzwa zvichibva pane iyo workpiece zvinhu kuti ive nechokwadi chakaenderana kuita uye roll hupenyu.

Ndinogona here kutanga neTwo-High mutsara ndosimudzira kusvika ina-High gare gare?

Ehe. Iyo modular dhizaini ndeye nemaune. Vazhinji vevatengi vedu vanotanga nembiri-Yepamusoro roughing uye yepakati mutsara, wobva wawedzera ina-Yepamusoro yekupedzisa inomira kana chigadzirwa chavo musanganiswa wachinja wakananga kutetepa kana kukwirisa-chaiyo flat waya. Iyo yekudzora sisitimu uye mutsara marongero akagadzirirwa kugarisa rudzi urwu rwekuwedzera kwechikamu pasina kuda kuvakwazve kwakazara.

Ndeipi yakajairika nguva yekutungamira yeyakagadziridzwa rolling line?

Kune yakajairwa yakasanganiswa yemhangura flat waya mutsetse, isu tinowanzo tora mwedzi 4-6 kubva pakusimbisa odha kusvika kufekitori yekubvuma kuyedzwa. Magadzirirwo echinyakare - kunyanya ayo anosanganisira asiri-yakajairwa roll madhayamita kana nyanzvi yeedging zvinodiwa - anogona kuwedzera iwo nguva nemavhiki 4-8. Isu tinopa 3D yekugadzira mutsara wekuenzanisira panguva yeinjiniya chikamu kuti vatengi vaongorore marongero uye kuyerera kwezvinhu tisati tacheka simbi.

Iwe unobata sei mushure mekutengesa-rutsigiro kune vatengi vekunze?

Isu tinopa yepasi rose 48-awa yekupindura nguva yerutsigiro rwehunyanzvi uye kuchengetedza network yevainjiniya vebasa vanogona kuenda kunzvimbo dzevatengi kuisirwa, kutumira, uye kugadzirisa matambudziko. Remote diagnostics inowanikwa kuburikidza nePLC control system yekukurumidza kugadzirisa nyaya. Isu tinopawo rubatsiro rwehunyanzvi hwehupenyu hwese kune zvishandiso zvataunza - hatifambi mushure menguva yewaranti.

Iwe unopa kuyedza rolling kana sampuli yekuyedza usati watenga?

Ehe. Isu tinokurudzira vangangove vatengi kuti vatitumire avo ari kuuya waya samples uye zvinongedzo zvakatemwa. Chikwata chedu cheinjiniya chinomhanyisa muyedzo pakumisikidzwa kwakafanana munzvimbo yedu yekuyedza uye nekupa samuenzaniso yewaya yakapedzwa waya ine yakazara dimensional mushumo. Izvi zvinopa mativi ese ari maviri akajeka, data-backed hwaro hwekutsanangurwa kwemidziyo.

Kana uri kuongorora Flat Wire Rolling Mill yekugadzira waya yemhangura - ingave yetransformer conductor, photovoltaic ribhoni, kana EV mota hairpin waya - timu yehunyanzvi paGRM iripo kuti ikurukure yako chaiyo feedstock, chinangwa chekushivirira, uye throughput zvinodiwa. Isu tanga tichivaka masisitimu aya kubva 2008, uye isu takasununguka nemibvunzo yakaoma.
